Emerson DeltaV VE6060 Dual Single-Mode Media Converter Assembly (Carrier KL1720X1-BA1)

The Emerson DeltaV VE6060 is the Dual Single-Mode Media Converter Assembly from the DeltaV Media Converters family, used to extend the DeltaV Control Network over single-mode fiber where copper Ethernet cannot reach. Each assembly combines a Dual Media Converter Carrier (part KL1720X1-BA1) with two 1-port single-mode media converters, providing a redundant pair on a single carrier for redundant control-network links. Every converter presents one 10/100BASE-TX copper port on an RJ45 connector and one 100BASE-FX single-mode fiber port on an LC connector, both full-duplex, converting copper Ethernet to fiber and back to carry the control network up to 15 km over 9/125 micron single-mode fiber (12 dBm minimum power budget). The carrier provides duplicated 24 V DC terminals for redundant, daisy-chainable power. Rated -40 to 70 °C with conformal coating and IP20 protection, and hazardous-area certified for Class I, Division 2, Groups A–D (T4) and ATEX/IECEx Ex ec IIC T4 Gc, it is designed to link field-mounted CHARM I/O Cards (CIOC) and other DeltaV and DeltaV SIS nodes back to the control room.

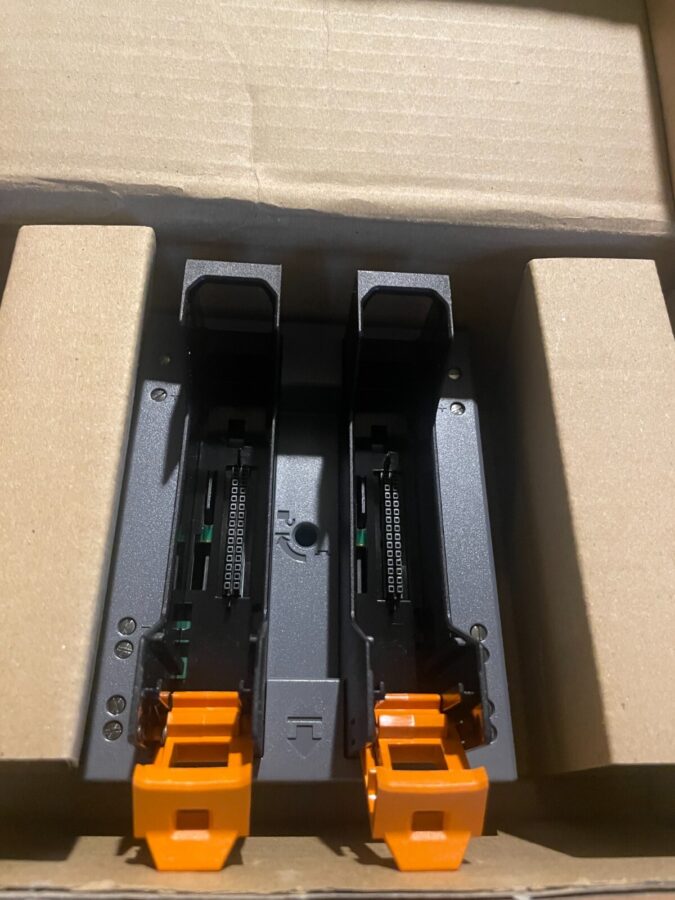

This unit is new, as listed. It is cited with DeltaV Dual Media Converter Carrier part number KL1720X1-BA1; whether the two single-mode converter modules ship with the carrier should be confirmed from the listing photos. The photographs are of the actual item you'll receive, backed by our warranty.
