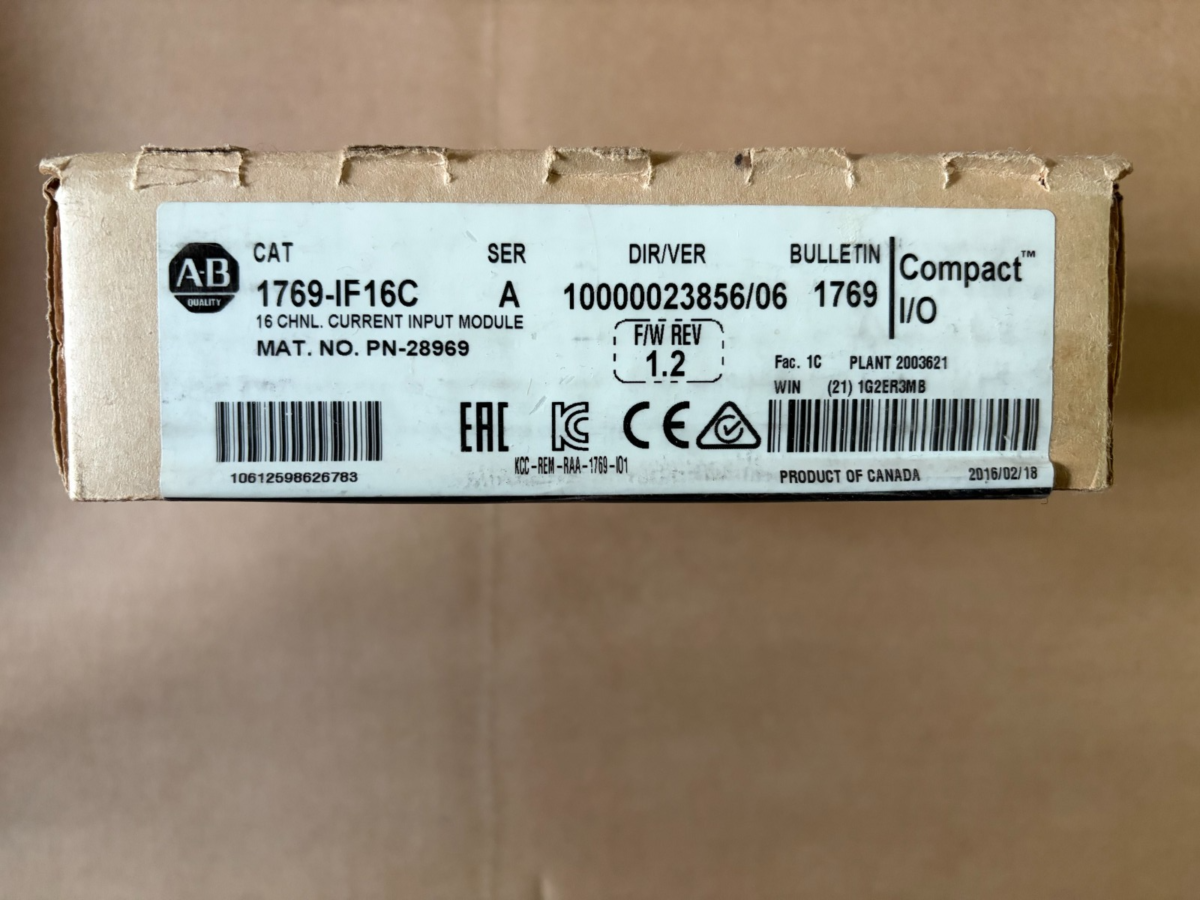

New Sealed Allen Bradley 1769-IF16C Compactlogix Analog Input Module
SKU: 1769-IF16C · Allen-Bradley
$599
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Allen-Bradley 1769-IF16C is a Compact I/O 16-channel analog current input module for CompactLogix controllers and MicroLogix 1500 (Series B) systems. It accepts 0-20 mA and 4-20 mA current signals (full scale 0-21 mA and 3.2-21 mA) and converts them with a sigma-delta converter at up to 16-bit unipolar resolution. Each channel is independently configured for input range, filter frequency, data format, real-time sampling and process alarms, with over/under-range bit reporting.
The input group is isolated from the backplane bus (500V AC / 710V DC, 1-minute qualification test) and the module draws a maximum of 190 mA @ 5V DC and 70 mA @ 24V DC from the backplane. The removable finger-safe terminal block and door are the module's field-replaceable parts. This unit is new and factory sealed, manufactured in 2016.
Condition: New, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
Specifications
| Number of inputs | 16 single-ended |
|---|---|
| Full scale ranges | 0-21 mA / 3.2-21 mA |
| Resolution, max | 16 bits (unipolar) |
| Input filters | Selectable 16 / 50 / 60 / 315 / 365 Hz |
| Input impedance | 249 Ω |
| Isolation (input group to bus) | 500V AC / 710V DC for 1 minute (qualification test) |
| Bus current draw, max | 190 mA @ 5V DC, 70 mA @ 24V DC |
| Heat dissipation | 4 W total (1769-IF16C) |
| Operating temperature | 0 to 60 °C (32 to 140 °F) |
| Storage temperature | -40 to 85 °C (-40 to 185 °F) |
| Dimensions (HxWxD), approx. | 118 x 87 x 35 mm (4.65 x 3.43 x 1.38 in) |
