Emerson DELTA V KL3003X1-BA1 DI-DRY Charm Terminal Block
SKU: KL3003X1-BA1 · Emerson
$299.99
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Emerson KL3003X1-BA1 is a single-channel discrete input CHARM for DeltaV Electronic Marshalling, sensing one 24 VDC dry contact per module. Emerson orders this CHARM type as model SE4301T02 (DI 24 VDC low-side sense, dry contact); it clips into a CHARM terminal block on a baseplate, and the channel can be configured as a discrete input or a pulse count input.

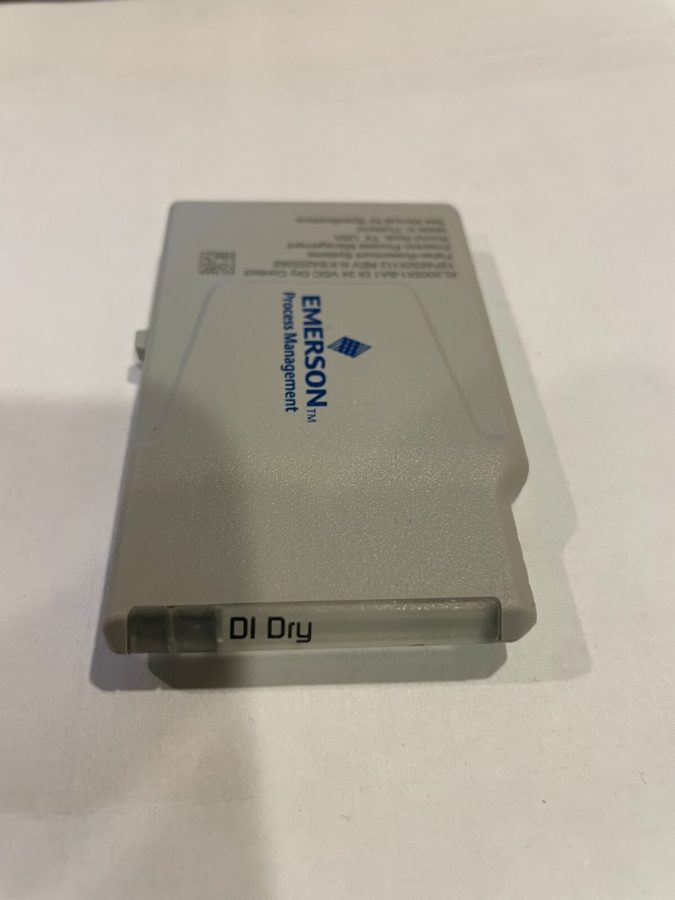

This listing is for one DI dry-contact CHARM as photographed. The unit is used.
Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
Specifications
| Platform | DeltaV Electronic Marshalling (single-channel CHARM I/O) |
|---|---|
| CHARM type | Discrete input, 24 VDC dry contact (Emerson ordering model SE4301T02) |
| Detection levels | On: >2.25 mA; Off: <1.75 mA |
| Wetting voltage | 22.5 V ±5%, current limited to 12.5 mA nominal |
| Channel types | Discrete input or pulse count (pulse train 0.1 Hz to 10 kHz) |
| Protection | 12.5 mA current-limiting circuit; field wiring disconnect |
| Mounting | Clips into a CHARM terminal block on a CHARM baseplate |
| Brand | Emerson |
|---|---|
| Model | RTD |
| MPN | KL3003X1-BA1, SE4301T02 |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
