Used · Tested In stock

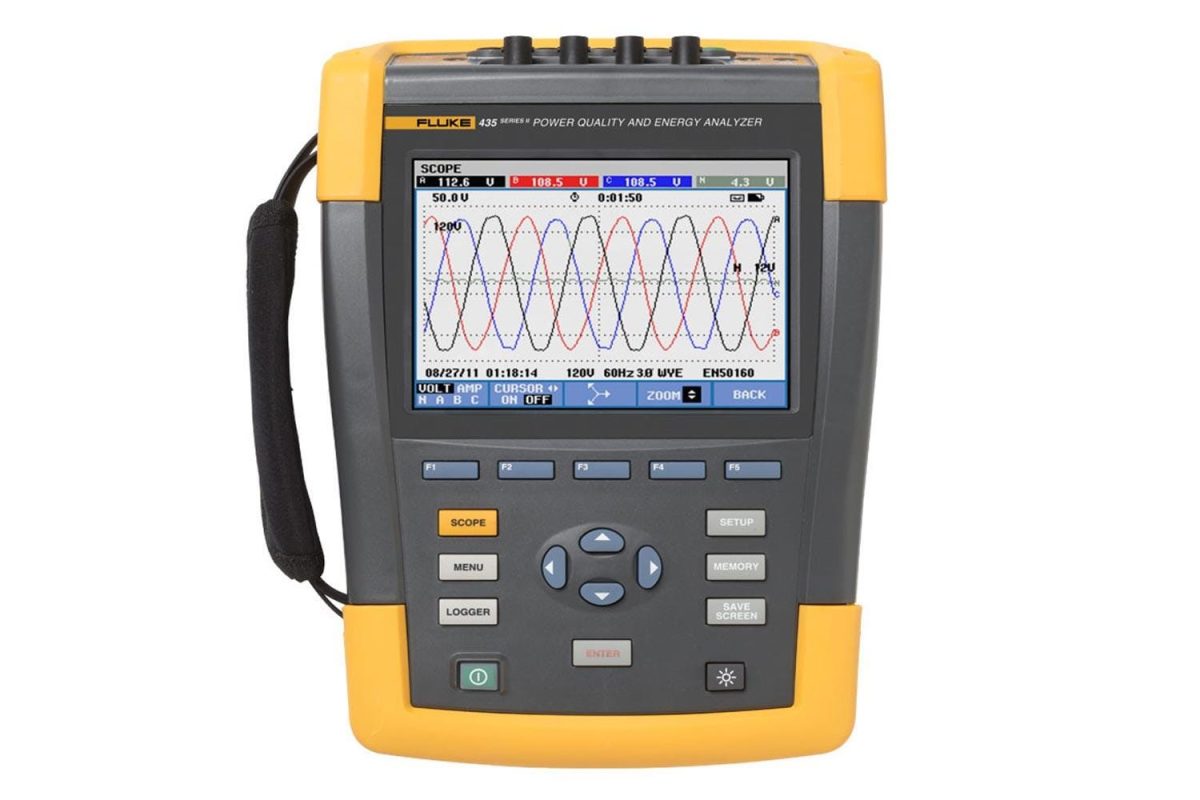

Fluke 435-II Power Quality and Energy Analyzer w/Harmonics, Transient- Demo unit
SKU: 435II · Fluke
$4,999
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Fluke 435 Series II is a three-phase power quality and energy analyzer compliant with IEC 61000-4-30 Class A, measuring voltage to 0.1% of nominal with 0.01 V resolution. Alongside classic power quality work (harmonics to the 50th order with interharmonics, plus transient and event waveform capture with time stamps), it adds an energy-loss calculator that puts a monetary figure on wasted energy and an inverter-efficiency mode for checking DC-to-AC conversion.
This listing is a demo unit, as titled, covering the harmonics and transient capability called out in the title, and it comes with a charger, a Fluke i3000s AC current clamp, and a Fluke i1000s AC current probe. Recordings store to an 8 GB SD card, expandable to 32 GB, and the BP290 lithium-ion battery runs 8 or more hours per charge. The display screen has a small cosmetic blemish, visible in the photos.
Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
Specifications
| Instrument type | Three-phase power quality and energy analyzer |
|---|---|
| Compliance | IEC 61000-4-30 Class A |
| Voltage accuracy | +/-0.1% of nominal, 0.01 V resolution (1 V to 1000 V phase-to-neutral) |
| Analysis | Energy-loss calculator, inverter efficiency, harmonics DC to 50th with interharmonics |
| Event capture | Transient and event waveform recording with time stamping |
| Memory | 8 GB SD card, expandable to 32 GB |
| Battery | BP290 Li-ion (28 Wh), 8+ hours per charge |
| Safety rating | CAT III 1000 V / CAT IV 600 V |
| Brand | Fluke |
|---|---|
| Part number | FLUKE-435-II |
| Condition | Used · Tested |
| Details | Class A |
| harmonics, transients | |
| demo unit |
| Country of Origin | United States |
|---|---|
| UPC | 0095969615563 |
| Brand | Fluke |
| Phase Configuration | 3-Phase |
| MPN | 435II |
| Current Measurement Range | 0-3000 Amps |
| Voltage Measurement Range | 1.0 > 2.8 |
| Ean | 0095969615563 |
| eBay Product ID (ePID) | 28031984352 |
| Weight | 15.75 |
| Height | 13.19in |
| Width | 12.300 |
| Length | 15.700 |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
