NEW Toshiba PC61910P216 Display / Keypad operator interface Z-078
SKU: PC61910P216 · Toshiba
$799
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Toshiba PC61910P216 is the DISP display/keypad assembly for the T300MV2, MTX and MTX2 adjustable speed motor drives. Toshiba's drive instruction manual lists it as the display/keypad spare part for these drives, one per drive, and it is the electronic operator interface (EOI) mounted on the cubicle surface for data display and basic drive operations.
The assembly combines a graphical LCD for text and numerical information with a 4 digit 7 segment LED display that shows frequency on induction, synchronous and permanent magnet motors, and feedback percentage on a static var controller. Control is through a rotary encoder that also acts as an Enter/select button plus five keys, with Run, Stop, Mode, Escape and Local/Remote functions. Three LEDs indicate local/remote mode and ready, running, alarm and fault states, and the panel includes RESET and INTERLOCK pushbuttons and an Ethernet commissioning tool port.
A replaceable battery on the back of the LCD board backs up the real time clock and saved parameter settings when control power is off.

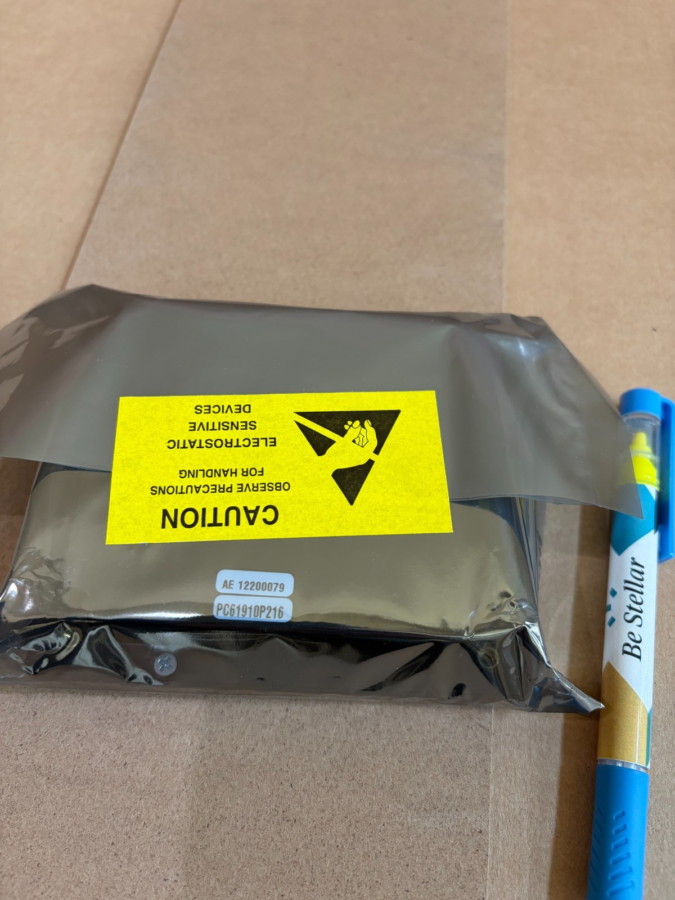

Condition: New – Open box, as listed. The photographs are of a unit from this lot, covered by our warranty.
Specifications
| 4 digit 7 segment display | Brightly displays the frequency when connected to an IM (Induction Motor), SM (Synchronous Motor), and PMM (Permanent Magnet Motor). Displays feedback (%) when connected to an SVC |
|---|---|
| Graphical LCD | Displays user information in text and numerical form |
| Commissioning Tool Port | Ethernet port used for communication to the commissioning and support tool |
| EOI firmware reference | A3TZ00E |
| Applicable standard | UL, NEMA |
|---|---|
| Ambient temperature | 0 to +40 °C for T300MV2; -20 to +50 °C for MTX series; -45 to +50 °C for MTX2 |
| Storage temperature | -20 to +60 °C |
| Humidity | Max 95%, no condensation |
| Altitude | 1000 m Max. above sea level |
| Vibration | 10 to 60 Hz, 0.5 G or less |
| Brand | Toshiba |
|---|---|
| MPN | PC61910P216 |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
