New · Sealed In stock
NEW Emerson 12P4633X112-233C KL3004X1-BA1 DO 24 VDC Dry Isolated Rev N.
SKU: 12P4633X112-233C · Emerson
$295
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Emerson KL3004X1-BA1 discrete output CHARM provides one galvanically isolated 24 VDC output channel for DeltaV Electronic Marshalling. Rated 1 A continuous with 2 A inrush headroom and a 4 A current-limiting circuit with thermal shutoff, it handles inductive loads such as solenoid valves while keeping the field circuit isolated from the system.

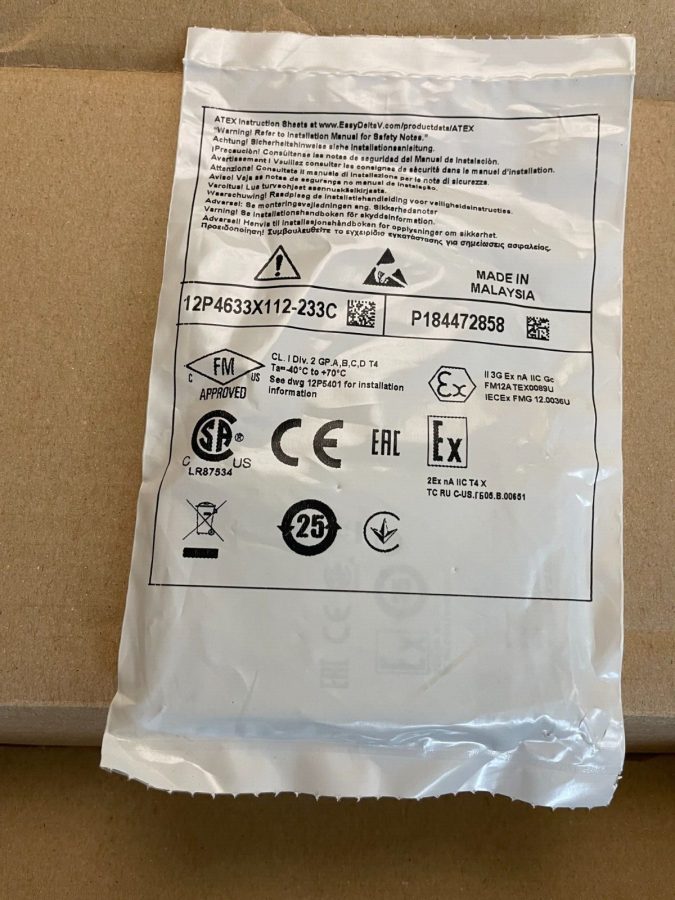

This listing is for one DO 24 VDC Isolated CHARM, Emerson assembly 12P4633X112-233C Rev N as shown in the title, new and factory sealed.
Condition: New, factory sealed, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
Specifications
| Platform | DeltaV Electronic Marshalling (single-channel CHARM I/O) |
|---|---|
| CHARM type | Discrete output, 24 VDC isolated (Emerson ordering model SE4302T02) |
| Output range | 4 to 32 VDC |
| Output rating | 1.0 A continuous; 2 A inrush for <100 ms |
| Isolation | Galvanically isolated output, factory tested to 1000 VDC |
| Protection | 4 A current-limiting circuit with thermal shutoff; field wiring disconnect |
| Operating temperature | -40 to +70 °C |
| Assembly number | 12P4633X112-233C Rev N (as listed) |
| Brand | Emerson, Fisher-Rosemount |
|---|---|
| Model | KL3004X1-BA1 |
| MPN | 12P4633X112-233C |
