EMERSON DELTAV KJ3225X1-BK1 AI 8 CH RTD/RESISTANCE INPUT KJ3225X1BK1 SE4003S6B1
SKU: KJ3225X1-BK1 · Emerson
$2,100
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Emerson KJ3225X1-BK1 is the DeltaV S-series RTD/resistance input card, reading eight channels of temperature or resistance measurement directly into the control system. It accepts 2-, 3- and 4-wire sensors - platinum, nickel and copper RTD types as well as raw resistance - with open-sensor detection and no field calibration required. The title also carries Emerson model SE4003S6B1, the ordering code that pairs this card with its RTD/resistance terminal block.

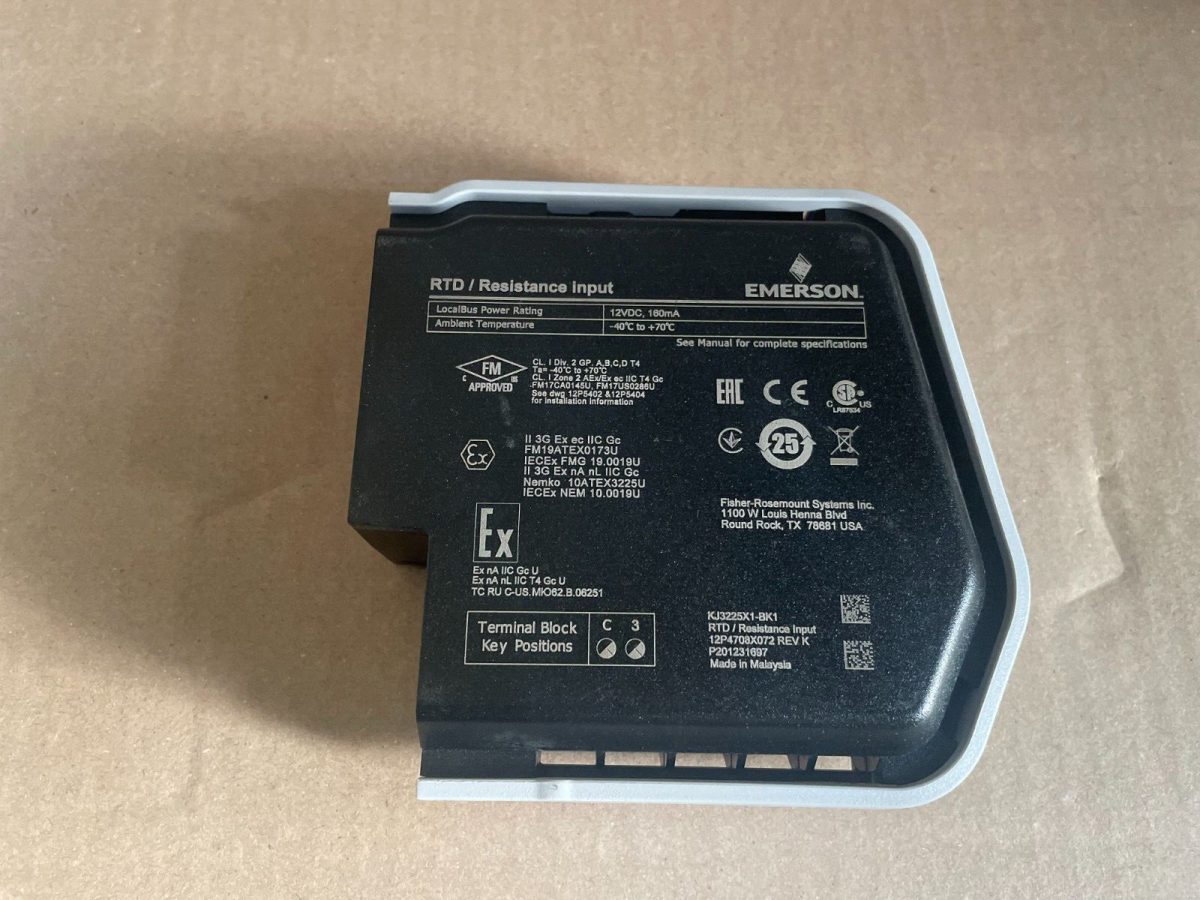

This listing is for the unit photographed. It is used.
Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
Specifications
| Platform | Emerson DeltaV S-series traditional I/O |
|---|---|
| Type | RTD/resistance input card, 8-channel |
| Sensor types | Resistance (0-2,000 Ω), Pt100, Pt200, Pt500, Ni120, Cu10, user defined |
| Sensor wiring | 2-wire, 3-wire or 4-wire |
| Resolution | 16-bit A/D converter; 100 µA sensor excitation |
| Diagnostics | Open sensor detection; 120 dB common-mode rejection at 50/60 Hz |
| Local bus power | 12 VDC nominal at 160 mA |
| Brand | Emerson |
|---|---|
| MPN | KJ3225X1-BK1 |
| Country of Origin | China |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
