New · Sealed In stock
Cisco Meraki MS390-48UX2-HW 48-Port 5GbE UPoE Layer 3 Cloud-Managed Stackable Switch
SKU: MS390-48UX2-HW · Cisco
$2,380
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Cisco Meraki MS390-48UX2 is the 48-port 5GbE model of the MS390 stackable access-switch series: 48 100M/1G/2.5G/5G multigigabit UPoE copper downlinks, plus a modular uplink slot that takes a 2×40G QSFP+ or an 8×10G SFP+ module. It moves 640 Gbps of switching capacity at a 476.19 Mpps forwarding rate, handles Layer 3 in hardware (OSPF routing, DHCP server/relay), holds up to 32,000 MAC addresses, and stacks up to eight units over 480 Gbps of dedicated physical stacking. Every access port delivers UPoE up to 60W and supports IEEE 802.3bt (Type 3), drawing on a 645W PoE budget with the standard power supply that scales to 1,745W when a second supply is fitted — enough to drive high-density Wi-Fi 6 access points, IP phones, cameras and other PoE endpoints from a single 1RU chassis.
The MS390 line is administered entirely from the Cisco Meraki cloud dashboard and requires an active Meraki enterprise license and dashboard account to operate; uplink modules, optics and licensing are separate components.

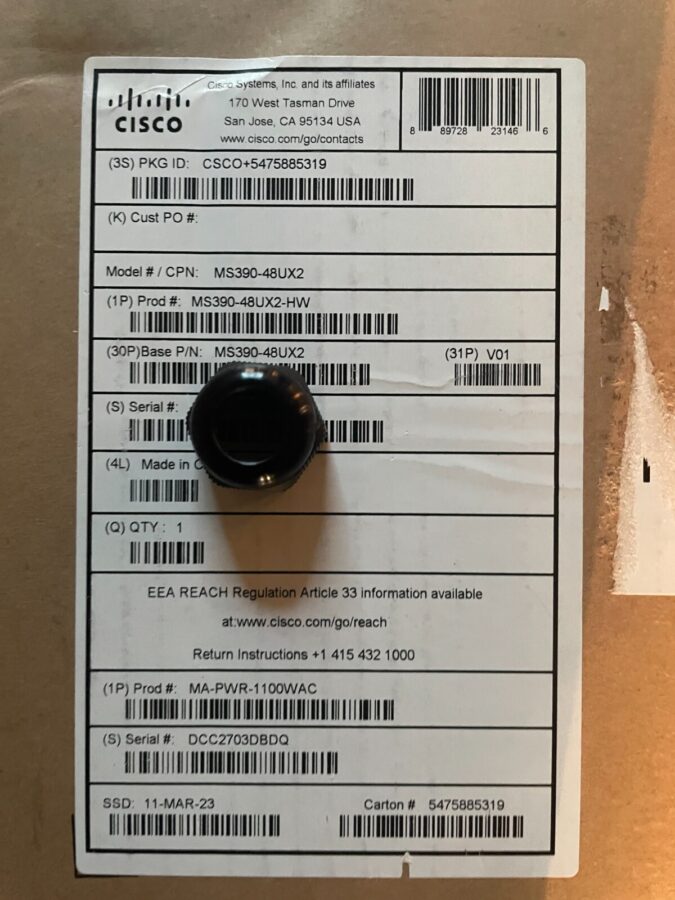

This unit is new, as listed. The photographs are of the actual item you'll receive, backed by our warranty.
Specifications
| Access ports | 48 × 100M/1G/2.5G/5G (5GbE mGig), UPoE |
|---|---|
| PoE | UPoE up to 60W/port, IEEE 802.3bt Type 3; 645W budget (1,745W with 2nd PSU) |
| Uplinks | Modular slot — 2 × 40G QSFP+ or 8 × 10G SFP+ |
| Switching capacity | 640 Gbps @ 476.19 Mpps |
| Stacking | Up to 8 units over 480 Gbps dedicated stacking |
| Layer 3 / MAC table | OSPF routing, DHCP server/relay; 32,000 MAC addresses |
| Management | Cisco Meraki cloud dashboard (license required); 1RU |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
