TOSHIBA VFAS1-4075PL-X9 380/480V Transistor Inverter

Toshiba's TOSVERT VF-AS1 is a high-performance industrial inverter family spanning 0.75 kW to 500 kW in the 400 V class, known for modular construction, an unusually deep parameter set, and drives that run with little or no programming out of the box. Dynamic braking, an EMC filter, and two-wire/four-wire RS485 communications are built in, with overload capacity of 100% continuous and 150% for 60 seconds.

This listing is a VFAS1-4075PL-X9 transistor inverter — the 7.5 kW (10 HP), 460 V class rating, delivering 17.6 A to a three-phase motor from a 380/480 V, 50/60 Hz supply; the -X9 suffix denotes a factory configuration variant of the standard 4075PL rating. Eight programmable discrete inputs, three discrete outputs, and five analog channels handle machine-level I/O.

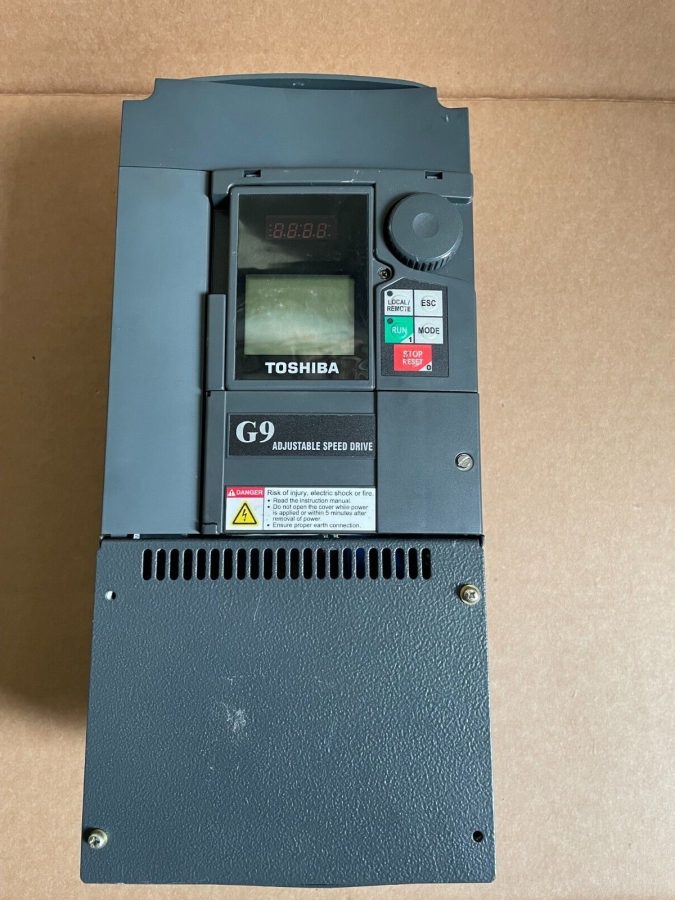

Condition: Used, tested, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
