New · Open Box In stock
NEW Badger Meter M-Series M2000 Electromagnetic Flow Meter
SKU: M2000 · Badger
$1,499
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Badger Meter ModMAG M2000 is a full-bore inline electromagnetic flow meter that measures water, wastewater, water-based fluids and other liquids meeting minimum electrical conductivity. Based on Faraday's law of induction, it uses a pulsed DC magnetic field with no moving parts in the flow stream, so there is no pressure loss and accuracy is not affected by fluid temperature, pressure, viscosity or density.
The meter combines a flow detector with a processor-based transmitter featuring signal conversion accuracy of ±0.20% of reading ±1 mm/s, a backlit 4-line by 20-character LCD, four programmable digital outputs, empty pipe detection, power-loss totalization and a 32-bit DSP. It operates on 85–265 V AC or optional 10–36 V DC power and is housed in a NEMA 4X (IP67) enclosure with a rotating cover. Standard communication is RS232 Modbus RTU, with HART, Profibus DP and other protocols available on separate daughterboards.
Per the listing, this unit is configured with 150 mm (DN150, 6 in.) ANSI Class 150 flanges. The M2000 carries NSF/ANSI/CAN 61 and 372 listing and CSA certification.

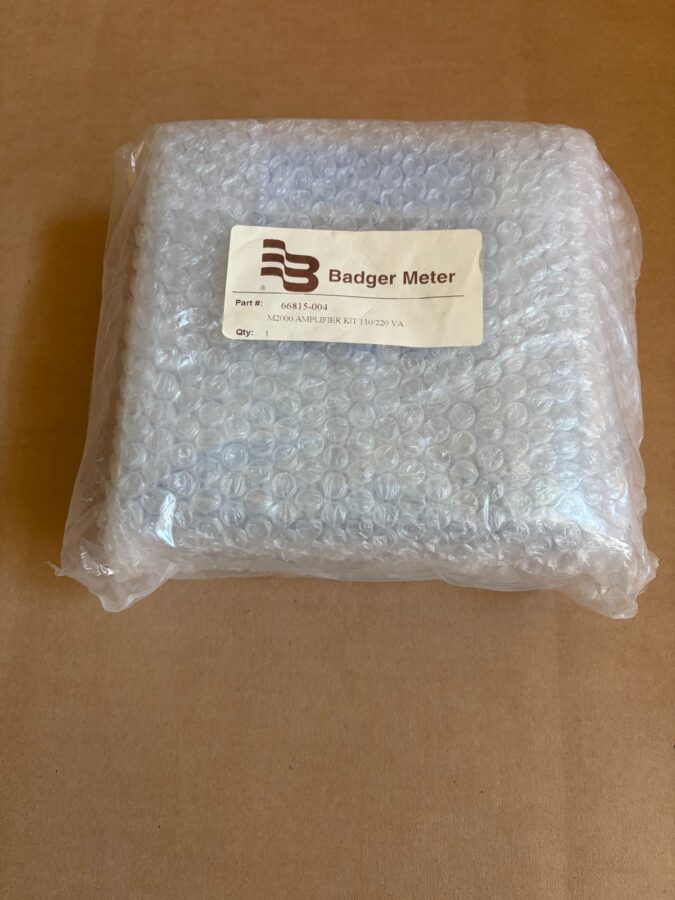

Condition: New – Open box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
Specifications
| Size range | 1/4 to 78 in. (DN 6 to 2000) |
|---|---|
| Accuracy | ±0.20% of reading ± 1 mm/s |
| Repeatability | ±0.1% |
| Flow range | 0.10 to 39.4 ft/s (0.03 to 12 m/s) |
| Power supply | 85–265 V AC; optional 10–36 V DC |
| Fluid conductivity | Minimum 5.0 µS/cm (20 µS/cm demineralized water) |
| Ambient temperature | −4 to 140°F (−20 to 60°C) |
| Fluid temperature (meter-mounted) | Rubber 178°F (80°C); PFA, PTFE & Halar 212°F (100°C) |
| Enclosure | NEMA 4X (IP67); optional NEMA 6P (IP68) |
| Communication | RS232 Modbus RTU standard; HART, Profibus DP, M-Bus require daughterboards |
| Flanges | ANSI B16.5 Class 150 (standard for sizes ≤ 24 in.) |
| Brand | Badger |
|---|---|
| Flow Meter Type | Electromagnetic Flow Meter |
| Port Diameter | 150ASA |
| MPN | M2000 |
| Country of Origin | Czech Republic |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
