New · Sealed In stock
2025 New Sealed Prosoft PLX31-MBTCP-MBS4 EtherNet/IP to 4 Port Serial Modbus
SKU: PLX31MBTCPMBS4 · ProSoft
$2,599
Ships with actual-unit photos and the Network Orbitz warranty.
About this item

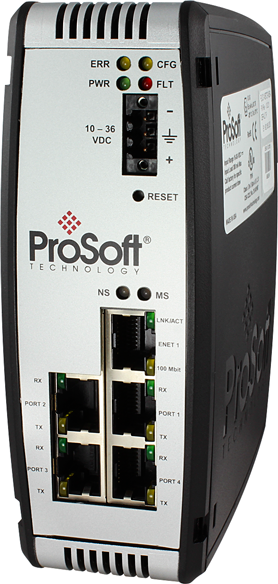

The ProSoft PLX31-MBTCP-MBS4 is a stand-alone industrial gateway that moves data in both directions between Modbus TCP/IP-enabled controllers and Modbus serial field devices. Its four serial ports are individually configurable for RS-232, RS-422 or RS-485 and speak Modbus RTU or ASCII, letting a single unit consolidate up to 400 serial devices, while the 10/100 Ethernet side supports up to 20 simultaneous client and server connections for PACs, HMIs, SCADA systems, power monitors and flow computers. An internal database of up to 10,000 16-bit registers, up to 160 configurable client commands and up to 100 commands per serial Master port leave room for large data maps.
Commissioning aids include an SD card slot (card optional) that stores the configuration file for disaster recovery, and the ProSoft Discovery Service utility, which finds the gateway and assigns its IP address without subnet changes. This listing is for a factory-sealed, 2025-dated unit.
Condition: New, sealed, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.
Specifications
| Platform | ProSoft PLX31-series stand-alone industrial gateway (IP20, NEMA/UL Open Type, DIN-rail) |
|---|---|
| Function | Bi-directional data transfer between Modbus TCP/IP and Modbus serial (RTU or ASCII) |
| Serial ports | 4x RS-232/RS-422/RS-485, supporting up to 400 Modbus serial devices |
| TCP/IP connections | Up to 20 simultaneous: 10 Clients; 5 MBAP + 5 encapsulated Servers |
| Commands | Up to 160 configurable Client commands; up to 100 commands per serial Master port |
| Data memory | Up to 10,000 16-bit registers |
| Configuration | SD card slot for disaster-recovery backup (card optional); ProSoft Discovery Service utility |
| Power | 24 VDC nominal (10 to 36 VDC allowed) |
| Brand | Prosoft |
|---|---|
| Type | Communications Module |
| Communication Standard | Ethernet |
| Model | Prosoft PLX31-MBTCP-MBS4 |
| MPN | PLX31MBTCPMBS4 |
| Controller Platform | ControlLogix |
| Country of Origin | Taiwan |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
