New · Sealed Out of stock

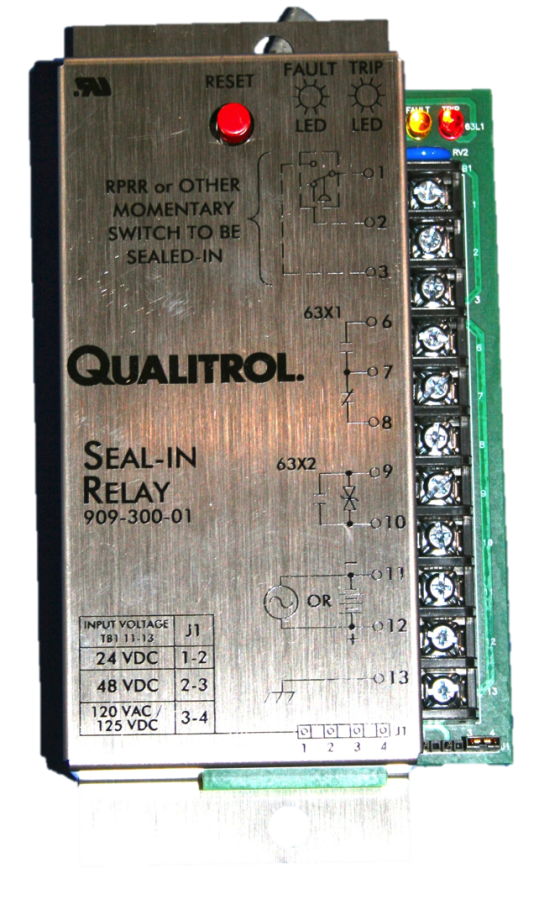

QUALITROL 909-300-01 SEAL- IN RELAY 24VDC – NEW
SKU: 909-300-01 · Qualitrol
$2,250
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Qualitrol 909-300-01 is a seal-in (latching) relay from the Qualitrol 909 Series, built for transformer protection schemes where a momentary contact closure has to be captured and held. Qualitrol’s 900 (oil-space) and 910 (gas-space) rapid pressure rise relays actuate only briefly during a sudden-pressure event; the 909 latches that momentary signal, holds the alarm and trip circuits with LED status indication, and releases only when the front-panel reset button is pressed. It is the standard companion device for Qualitrol RPRR protection in utility substations, transformer manufacturing, and industrial power plants.
This listing is for a Qualitrol 909-300-01 with screw-terminal field wiring, listed for 24 VDC control power. The unit accepts a jumper-selectable supply, drives two output relays for simultaneous alarm and trip control, and uses a redundant make/break input circuit that protects against false trips caused by damaged wiring.
Condition: New, sealed, as listed. The photographs are of the actual unit you’ll receive, covered by our warranty.
Specifications
| Platform | Qualitrol 909 Series seal-in (latching) relay for transformer protection circuits |
|---|---|
| Function | Latches momentary alarm/trip contact closures and holds them until the front-panel reset button is pressed |
| Works with | Qualitrol 900 (oil-space) and 910 (gas-space) rapid pressure rise relays and other momentary-contact instruments |
| Outputs | Two output relays for simultaneous alarm and trip control |
| Output contact rating | 1/4 HP @ 125/250 VAC; 8 A @ 250 VAC; 8 A @ 30 VDC (resistive) |
| Reaction time | Under 20 ms |
| Supply input | Jumper-selectable 24 VDC, 48 VDC, or line-voltage AC/DC; 24 VDC per this listing |
| Reliability features | Status LEDs; redundant make/break input circuit guards against false trips from damaged wiring |
| Brand | QUALITROL |
|---|---|
| Type | Screw Terminal |
| Voltage | 24VDC |
| Model | 909-300-01 |
| MPN | 909-300-01 |
