New Eaton HFD3175L Circuit Breaker 175 Amp 600VAC 3 Pole
SKU: HFD3175L · Eaton
$899
Ships with actual-unit photos and the Network Orbitz warranty.
About this item

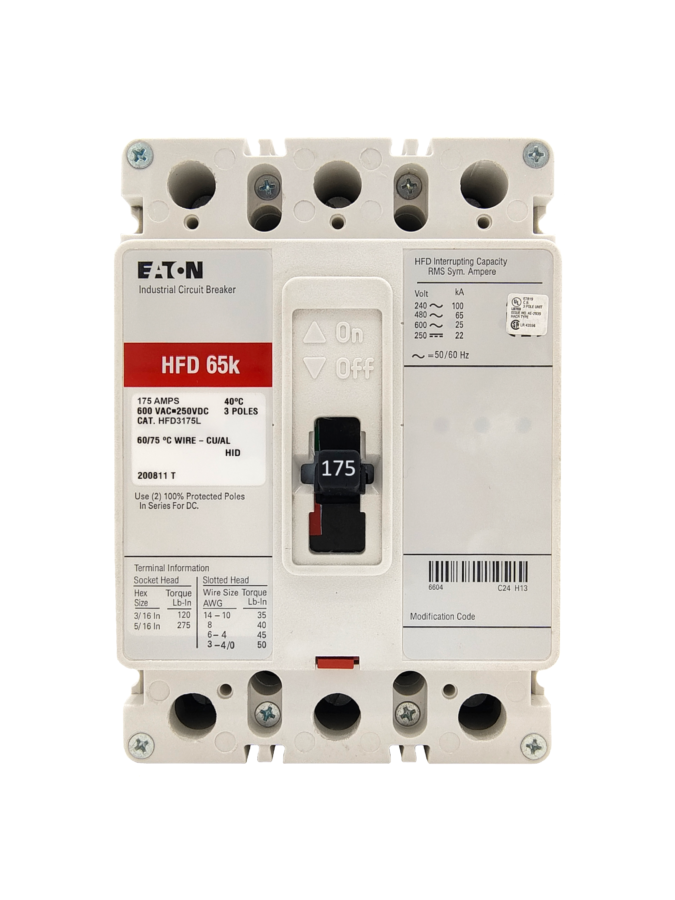

The Eaton HFD3175L is a 175 A member of the Series C HFD family — F-frame molded case circuit breakers with high interrupting capacity for commercial and industrial feeders. Rated 175 A at 40 °C on a 3-pole, 600 Vac / 250 Vdc frame, it interrupts 100 kA at 240 Vac, 65 kA at 480 Vac and 25 kA at 600 Vac through a fixed thermal-magnetic trip.
This listing is a new, open-box breaker with standard line and load end terminals, bolt-on mounted in Eaton Series C panelboards and switchboards.
Condition: New · Open Box, as listed. The photographs are of the actual unit you'll receive, covered by our warranty.
Specifications
| Platform | Eaton Series C F-frame molded case circuit breaker, type HFD (high interrupting) |
|---|---|
| Rated current | 175 A at 40 °C |
| Voltage rating | 600 Vac / 250 Vdc, 50/60 Hz |
| Interrupting ratings | 100 kA @ 240 Vac · 65 kA @ 480 Vac · 25 kA @ 600 Vac |
| Trip unit | Fixed thermal-magnetic, non-interchangeable |
| Terminals | Line and load end terminals, standard |
| Certification | UL Listed |
| Mounting Style | Bolt-On |
|---|---|
| Interruption Type | Thermal Circuit Breaker |
| Number of Positions | 3 |
| Color | White |
| Current Rating | 151-200 A |
| Number of Phases | 3 |
| MPN | HFD3175L |
| Brand | Eaton |
| Operation Method | On/Off |
| Current Type | AC/DC |
| Break Time | Thermal Magnetic |
| Control Style | Switch |
| Number in Pack | 1 |
| Voltage | 551-600 V |
| Model | HFD3175L |
| Number of Poles | 3 |
| Application | Industrial |
| Country of Origin | China |
| UPC | 786679015476 |
