New · Open Box In stock

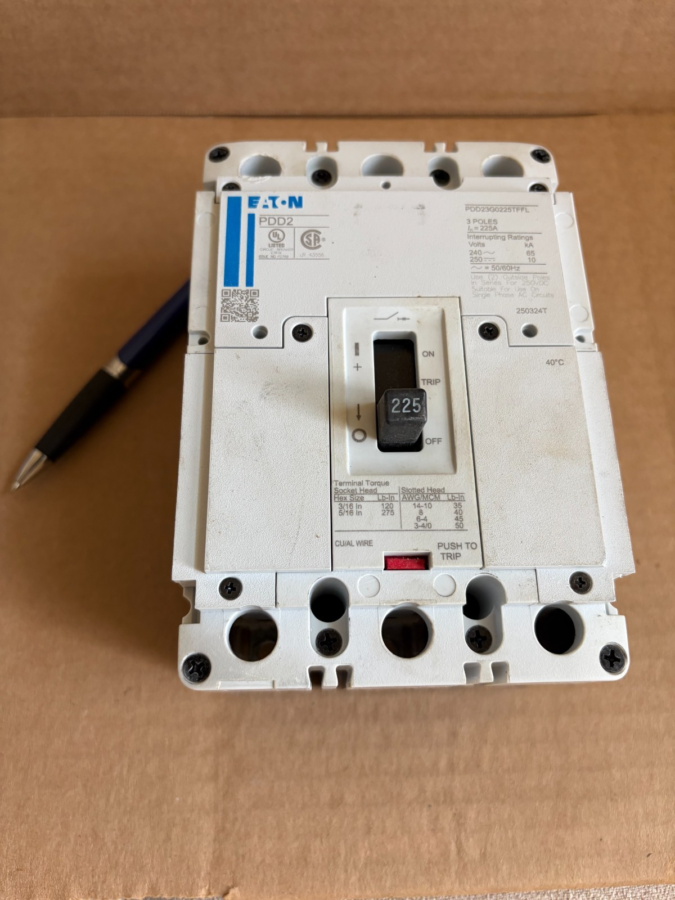

Eaton PDG23G0225TFFL 225A 3-Pole 480V Molded Case Circuit Breaker
SKU: PDG23G0225TFFL · Eaton
$499
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Eaton PDG23G0225TFFL is a Power Defense globally rated, Frame 2 molded case circuit breaker configured for 3-pole distribution and feeder protection. It carries a continuous current rating of 225 A, a voltage rating of 600 Vac / 250 Vdc, and a fixed thermal-magnetic trip unit providing long-time and instantaneous protection. Its interrupting capacity is 35 kA at 480 Vac, UL 489 listed and CSA certified, suiting it to branch, feeder, and equipment protection in panelboards, switchboards, and motor control centers on 480 Vac-class distribution systems.
In Eaton's Power Defense catalog numbering, the G in the third position identifies the 480 Vac interrupting class, the 2 denotes Frame 2, the 3 denotes three poles, 0225 is the 225 A continuous current rating, and the TFFL suffix denotes a thermal-magnetic trip unit with fixed (non-adjustable) thermal and magnetic settings and standard load-side-only terminals. This listing is for the breaker itself.
This unit is new, open box, as listed. The photographs are of the actual item you'll receive, backed by our warranty.
Specifications
| Poles | 3-Pole |
|---|---|
| Continuous Current | 225 A |
| Voltage Rating | 600 Vac / 250 Vdc |
| Interrupting Capacity | 35 kA @ 480 Vac (UL 489) |
| Frame | Frame 2, Power Defense (Globally Rated) |
| Trip Unit | Thermal-Magnetic, Fixed/Fixed (non-adjustable) |
| Protection | Long-time + Instantaneous |
| Terminals | Standard, Load Only |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
