Eaton FD3070L 70A 3-Pole 600V Circuit Breaker
SKU: FD3070L · Eaton
$525
Ships with actual-unit photos and the Network Orbitz warranty.
About this item
The Eaton FD3070L is a Series C, F-frame molded case circuit breaker rated 70A across 3 poles, with a voltage rating of 600 Vac / 250 Vdc at 50/60 Hz. It uses a fixed thermal-magnetic trip unit with long-time and instantaneous protection, and carries an interrupt rating of 65 kAIC at 240 Vac or 35 kAIC at 480 Vac. Breakers in this family are used for branch-circuit protection in panelboards, switchboards, motor control centers, and busway plug-in applications across industrial and commercial power distribution systems.
The "L" suffix on the catalog number denotes line-and-load terminal lugs – standard F-frame breakers ship with load-side lugs only, and the L variant adds line-side lugs for feed-thru, unit-mount installations rather than a bus connection. This listing is for one FD3070L breaker (Qty: 1).

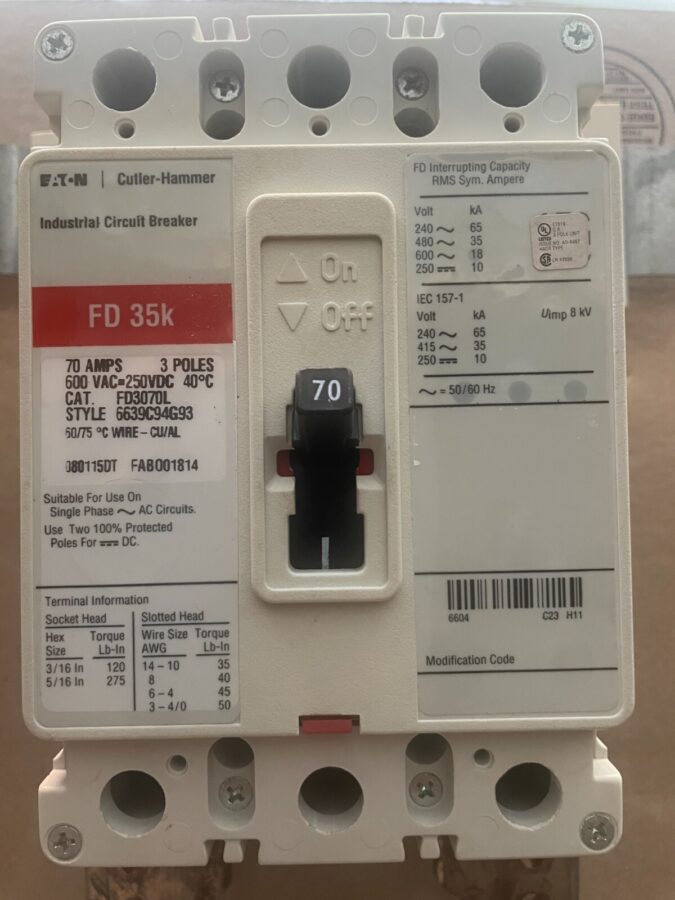

This unit ships as listed, in the condition shown. The photographs are of the actual item you'll receive, backed by our warranty.
Specifications
| Frame / Series | F-Frame, Series C |
|---|---|
| Poles | 3 |
| Amperage Rating | 70 A |
| Voltage Rating | 600 Vac / 250 Vdc |
| Frequency | 50/60 Hz |
| Interrupt Rating | 65 kAIC @ 240 Vac · 35 kAIC @ 480 Vac |
| Trip Type | Fixed thermal-magnetic (Long-Time + Instantaneous) |
| Terminals | Line and load lugs, feed-thru |
| Warranty | Network Orbitz warranty from delivery: repair, replacement, or refund on functional defects. Sealed units may also carry the manufacturer warranty. |
|---|---|
| Returns | Start an RMA with your order number — we respond with a number and prepaid return instructions. |
| Shipping | Tracked, insured carriers (DHL, FedEx, UPS) to 30+ countries. Freight crating for heavy items. |
| Duties & customs | International duties and taxes are billed by your local customs authority — we're happy to advise on documentation before you order. |
